Riešenie úloh z cvičení

Úvod do R

dat <- datasets::mtcars

str(dat)

'data.frame':   32 obs. of  11 variables:
 $ mpg : num  21 21 22.8 21.4 18.7 18.1 14.3 24.4 22.8 19.2 ...
 $ cyl : num  6 6 4 6 8 6 8 4 4 6 ...
 $ disp: num  160 160 108 258 360 ...
 $ hp  : num  110 110 93 110 175 105 245 62 95 123 ...
 $ drat: num  3.9 3.9 3.85 3.08 3.15 2.76 3.21 3.69 3.92 3.92 ...
 $ wt  : num  2.62 2.88 2.32 3.21 3.44 ...
 $ qsec: num  16.5 17 18.6 19.4 17 ...
 $ vs  : num  0 0 1 1 0 1 0 1 1 1 ...
 $ am  : num  1 1 1 0 0 0 0 0 0 0 ...
 $ gear: num  4 4 4 3 3 3 3 4 4 4 ...
 $ carb: num  4 4 1 1 2 1 4 2 2 4 ...

head(dat, 5)

                   mpg cyl disp  hp drat    wt  qsec vs am gear carb
Mazda RX4         21.0   6  160 110 3.90 2.620 16.46  0  1    4    4
Mazda RX4 Wag     21.0   6  160 110 3.90 2.875 17.02  0  1    4    4
Datsun 710        22.8   4  108  93 3.85 2.320 18.61  1  1    4    1
Hornet 4 Drive    21.4   6  258 110 3.08 3.215 19.44  1  0    3    1
Hornet Sportabout 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2

dat$kml <- dat$mpg * 0.425144

aut <- dat$am == 0
c(automat = mean(dat$kml[aut]),
  manual = mean(dat$kml[!aut])
)

  automat    manual
 7.290101 10.370243

subset(dat, subset = gear==5 & wt<3, select = c(cyl, disp, hp))

              cyl  disp  hp
Porsche 914-2   4 120.3  91
Lotus Europa    4  95.1 113
Ferrari Dino    6 145.0 175

convert <- function(x, impunit = c("mile", "gallon", "inch", "pound"), toSI = TRUE) {
  p <- toSI*2 - 1
  const <- switch(impunit[1],
                  mile = 1.609,
                  gallon = 3.785,
                  inch = 0.254,
                  pound = 0.453592
  )
  x * const^p
}
# Súčasťou definície novej funkcie by mal byť aj príklad jej použitia:
convert(4, "inch")

[1] 1.016

convert(1.016, "inch", toSI = FALSE)

[1] 4

7. Pomocou klasického príkazu for:

tmp <- numeric(length = nrow(dat))  # vytvorenie prázdneho vektora
for (i in 1:nrow(dat)) {
  tmp[i] <- convert(dat[i,"disp"]^(1/3), "inch")^3
}
rm(i)  # for vytvorí pomocnú indexovú premennú i ako globálnu, odporúčam upratať
tmp  # výsledok

 [1] 2.621930 2.621930 1.769803 4.227863 5.899343 3.687089 5.899343 2.403982
 [9] 2.307299 2.746472 2.746472 4.519552 4.519552 4.519552 7.734694 7.538049
[17] 7.210308 1.289662 1.240501 1.165120 1.968086 5.211086 4.981667 5.735472
[25] 6.554826 1.294578 1.971364 1.558410 5.751859 2.376124 4.932506 1.982835

Elegantnejšie a rýchlejšie pomocou sapply:

sapply(dat$wt, convert, impunit = "pound")

 [1] 1.1884110 1.3040770 1.0523334 1.4582983 1.5603565 1.5694283 1.6193234
 [8] 1.4469585 1.4288148 1.5603565 1.5603565 1.8461194 1.6918982 1.7145778
[15] 2.3813580 2.4602830 2.4244492 0.9979024 0.7325511 0.8323413 1.1181043
[22] 1.5966438 1.5580885 1.7417933 1.7440612 0.8777005 0.9706869 0.6862847
[29] 1.4378866 1.2564498 1.6193234 1.2609858

# alternatívne:
#+ eval=F
sapply(dat$wt, function(x) convert(x, impunit = "pound"))

Ak je funkcia už vektorizovaná, netreba používať funkcie pre cykly. Vektorizovať sa dá napr. pomocou funkcie Vectorize, alebo vhodnou konštrukciou funkcie pomocou už vektorizovaných funkcií. Tak bola vytvorená napr. aj naša funkcia convert, preto nasledujúci príkaz tiež funguje.

convert(dat$wt, impunit = "pound")

setwd("/media/tomas/SAM32/documents/math/edu/R_ucebnica")

datRT <- read.table("data/mtcars.txt", header = T, skip = 2, dec=",", sep = "",
                    na.strings = "?")
all.equal(target = datRT, current = dat)

[1] "Length mismatch: comparison on first 11 components"
[2] "Component \"vs\": 'is.NA' value mismatch: 0 in current 2 in target"

Tým, že sme do dat pridali stĺpec kml, líšia sa šírkou (Length mismatch). V stĺpci vs sú v cieľovom (target) objekte 2 chýbajúce hodnoty (NA).

Prieskumná analýza

data(Cars93, package = "MASS")

? Cars93

summary(Cars93)

    Manufacturer     Model         Type      Min.Price         Price
 Chevrolet: 8    100    : 1   Compact:16   Min.   : 6.70   Min.   : 7.40
 Ford     : 8    190E   : 1   Large  :11   1st Qu.:10.80   1st Qu.:12.20
 Dodge    : 6    240    : 1   Midsize:22   Median :14.70   Median :17.70
 Mazda    : 5    300E   : 1   Small  :21   Mean   :17.13   Mean   :19.51
 Pontiac  : 5    323    : 1   Sporty :14   3rd Qu.:20.30   3rd Qu.:23.30
 Buick    : 4    535i   : 1   Van    : 9   Max.   :45.40   Max.   :61.90
 (Other)  :57    (Other):87
   Max.Price       MPG.city      MPG.highway                  AirBags
 Min.   : 7.9   Min.   :15.00   Min.   :20.00   Driver & Passenger:16
 1st Qu.:14.7   1st Qu.:18.00   1st Qu.:26.00   Driver only       :43
 Median :19.6   Median :21.00   Median :28.00   None              :34
 Mean   :21.9   Mean   :22.37   Mean   :29.09
 3rd Qu.:25.3   3rd Qu.:25.00   3rd Qu.:31.00
 Max.   :80.0   Max.   :46.00   Max.   :50.00

 DriveTrain  Cylinders    EngineSize      Horsepower         RPM
 4WD  :10   3     : 3   Min.   :1.000   Min.   : 55.0   Min.   :3800
 Front:67   4     :49   1st Qu.:1.800   1st Qu.:103.0   1st Qu.:4800
 Rear :16   5     : 2   Median :2.400   Median :140.0   Median :5200
            6     :31   Mean   :2.668   Mean   :143.8   Mean   :5281
            8     : 7   3rd Qu.:3.300   3rd Qu.:170.0   3rd Qu.:5750
            rotary: 1   Max.   :5.700   Max.   :300.0   Max.   :6500

  Rev.per.mile  Man.trans.avail Fuel.tank.capacity   Passengers
 Min.   :1320   No :32          Min.   : 9.20      Min.   :2.000
 1st Qu.:1985   Yes:61          1st Qu.:14.50      1st Qu.:4.000
 Median :2340                   Median :16.40      Median :5.000
 Mean   :2332                   Mean   :16.66      Mean   :5.086
 3rd Qu.:2565                   3rd Qu.:18.80      3rd Qu.:6.000
 Max.   :3755                   Max.   :27.00      Max.   :8.000

     Length        Wheelbase         Width        Turn.circle
 Min.   :141.0   Min.   : 90.0   Min.   :60.00   Min.   :32.00
 1st Qu.:174.0   1st Qu.: 98.0   1st Qu.:67.00   1st Qu.:37.00
 Median :183.0   Median :103.0   Median :69.00   Median :39.00
 Mean   :183.2   Mean   :103.9   Mean   :69.38   Mean   :38.96
 3rd Qu.:192.0   3rd Qu.:110.0   3rd Qu.:72.00   3rd Qu.:41.00
 Max.   :219.0   Max.   :119.0   Max.   :78.00   Max.   :45.00

 Rear.seat.room   Luggage.room       Weight         Origin              Make
 Min.   :19.00   Min.   : 6.00   Min.   :1695   USA    :48   Acura Integra: 1
 1st Qu.:26.00   1st Qu.:12.00   1st Qu.:2620   non-USA:45   Acura Legend : 1
 Median :27.50   Median :14.00   Median :3040                Audi 100     : 1
 Mean   :27.83   Mean   :13.89   Mean   :3073                Audi 90      : 1
 3rd Qu.:30.00   3rd Qu.:15.00   3rd Qu.:3525                BMW 535i     : 1
 Max.   :36.00   Max.   :22.00   Max.   :4105                Buick Century: 1
 NA's   :2       NA's   :11                                  (Other)      :87

Súbor údajov o 93 autách predávaných v USA v roku 1993 obsahuje 93 riadkov a 27 stĺpcov, väčšina premenných (stĺpcov) ako napr. cena Price je kvantitatívnych (numerických), niektoré sú kvalitatívne, napr. výrobca Manufacturer. Podľa toho je zostavený súhrn funkciou summary. Iný súhrn ponúka napr.

priceUSA <- subset(Cars93, subset = Origin=="USA", select = Price, drop=T)

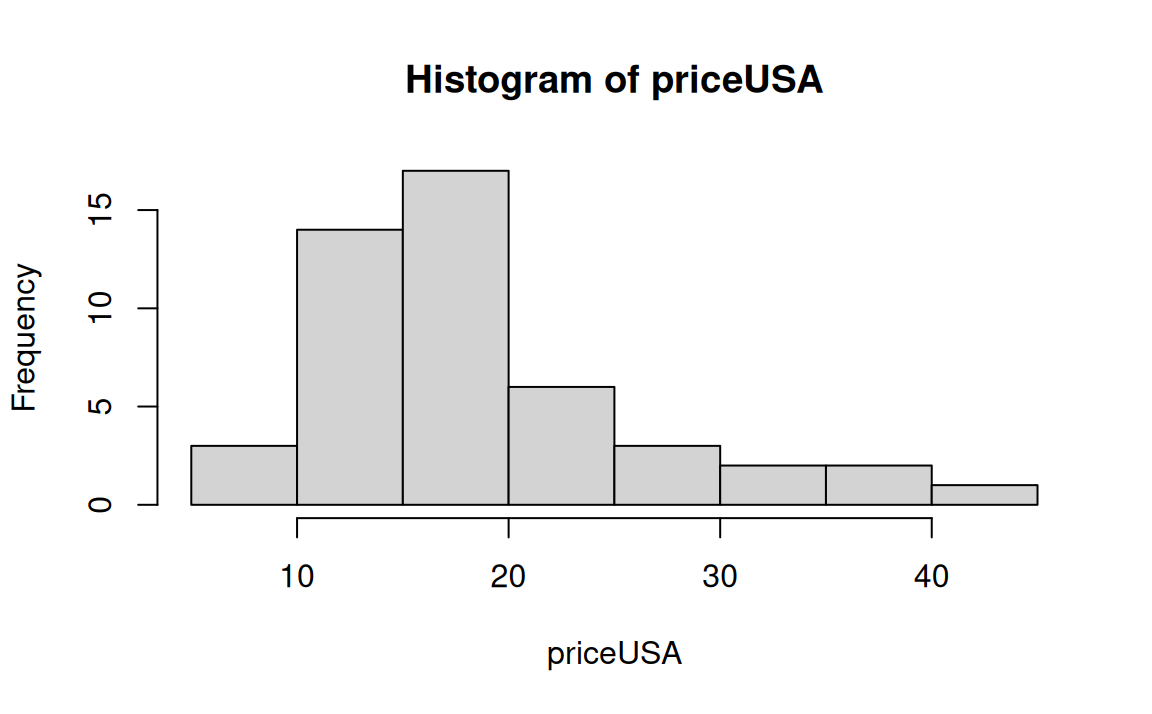

hist(priceUSA)

summary(priceUSA)

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
   7.40   13.47   16.30   18.57   20.73   40.10

Rozdelenie je asymetrické, pravdepodobnejšie (častejšie) sú lacnejšie autá. Preto je medián (16 300$) menší ako priemerná hodnota (18 570$)

pocetnostManuf <- sort(table(Cars93$Manufacturer), decreasing=T)

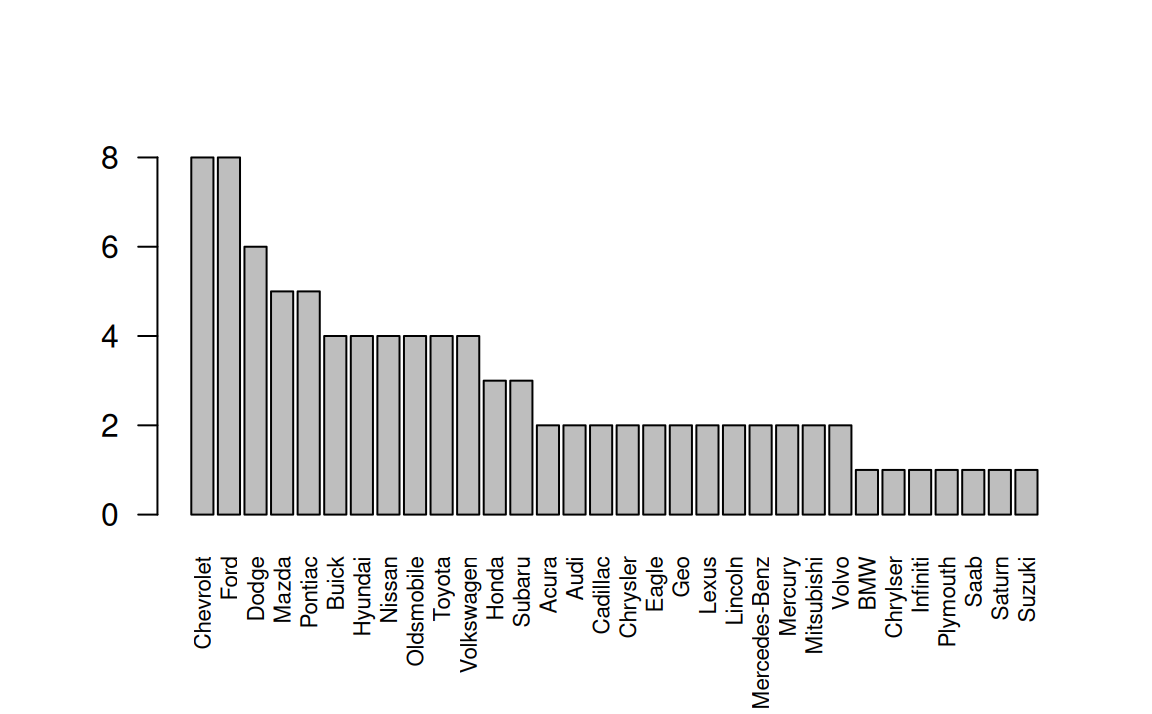

barplot(pocetnostManuf, las=2, cex.names=0.7)

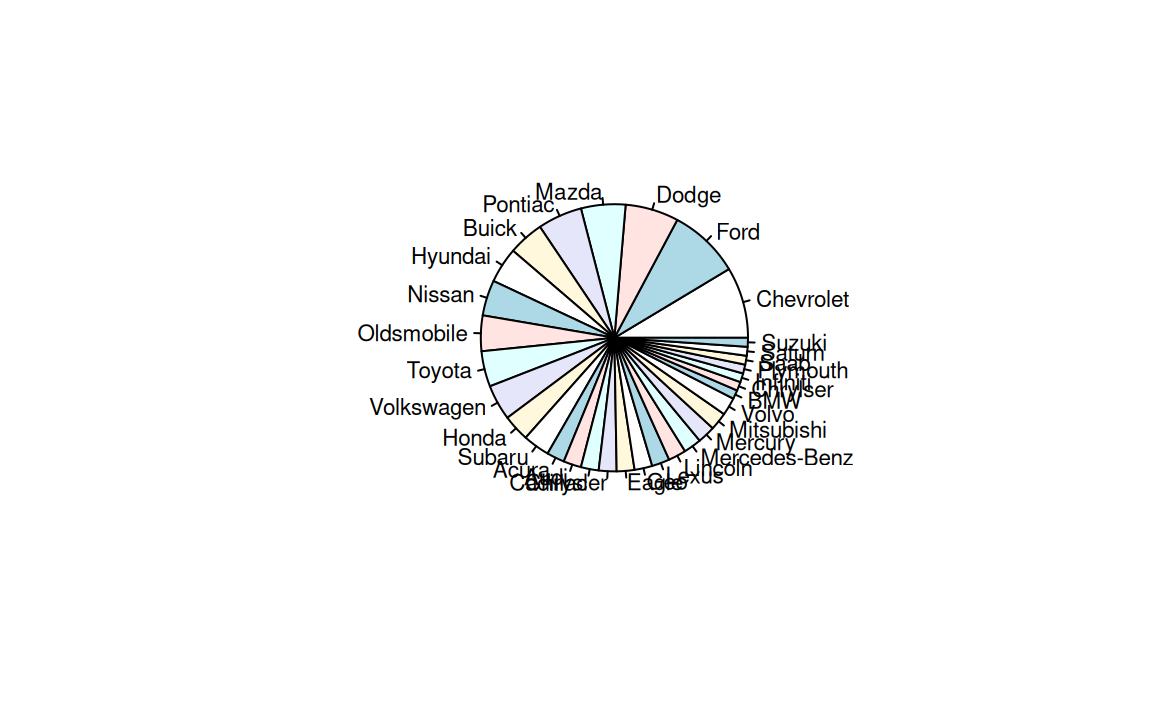

pie(pocetnostManuf,cex=0.7)

dotchart(pocetnostManuf, cex=0.7)

Warning in dotchart(pocetnostManuf, cex = 0.7): 'x' is neither a vector nor a
matrix: using as.numeric(x)

Najprehľadnejší je asi stĺpcový graf, prípadne aj bodový graf. Koláčový graf sa hodí na zobrazenie podielu nanajvýš zopár skupín. (Ľudský mozog nie je veľmi dobrý v rozlišovaní rozdielov v kruhových výsekoch, ľahšie vníma rozdiely obdĺžnikových tvarov.)

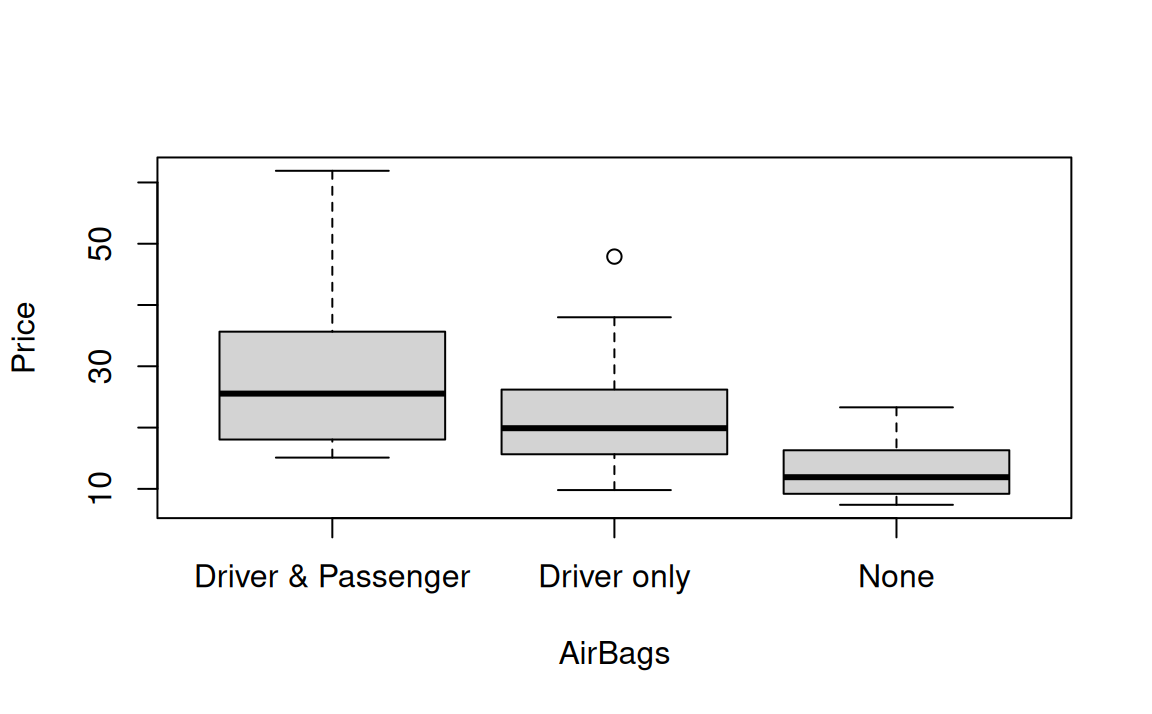

plot(Price ~ AirBags, data=Cars93)

Jednoznačne cena rastie s výbavou.

plot(Horsepower ~ EngineSize, data=Cars93, col = Cars93$Origin, pch=20)
legend("bottomright", legend = levels(Cars93$Origin), col = 1:2, pch = 20)

Vyzerá to, že neamerické modely dosahujú pri rovnakom zdvihovom objeme vyšší výkon ako americké a rozdiel sa s objemom zvyšuje.

Cars93$Type <- factor(
  x = Cars93$Type,
  levels = c("Small", "Sporty", "Compact", "Midsize", "Large", "Van")
  )
# automatické zoradenie tried podľa priemernej hmotnosti:
# Cars93$Type <- reorder(Cars93$Type, X = Cars93$Weight, FUN = mean)

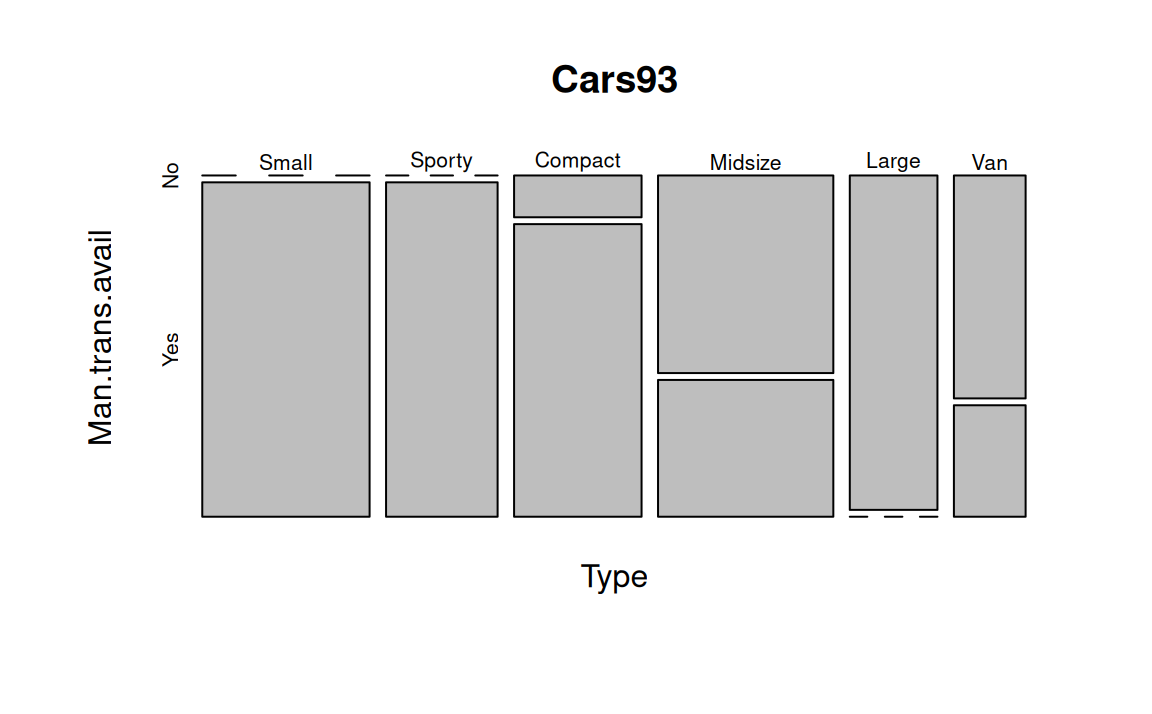

mosaicplot(Type ~ Man.trans.avail, data=Cars93)

Dostupnosť manuálnej prevodovky je doménou menších, kompaktných áut.

Transformácia a súhrn

data(Cars93, package = "MASS")

library(dplyr, warn.conflicts = FALSE)
auta93 <- select(Cars93, 1:3, contains("Price"), -contains(".Price"), starts_with("MPG"),
                 AirBags:Horsepower, - DriveTrain, Weight, Origin)

auta93 %>%
  rename(CylindersVolume = EngineSize) %>%
  mutate(Weight = Weight * 0.4536) %>%
  filter(Weight < 1200 & Origin == "USA") %>%
  arrange(Type, Price) %>%
  print() %>%
  group_by(Type) %>%
  summarise(mean = mean(MPG.city), .groups = "drop")

   Manufacturer    Model    Type Price MPG.city MPG.highway     AirBags
1       Pontiac  Sunbird Compact  11.1       23          31        None
2     Chevrolet Cavalier Compact  13.4       25          36        None
3          Ford  Festiva   Small   7.4       31          33        None
4       Pontiac   LeMans   Small   9.0       31          41        None
5         Dodge     Colt   Small   9.2       29          33        None
6          Ford   Escort   Small  10.1       23          30        None
7        Saturn       SL   Small  11.1       28          38 Driver only
8         Eagle   Summit   Small  12.2       29          33        None
9       Mercury    Capri  Sporty  14.1       23          26 Driver only
10     Plymouth    Laser  Sporty  14.4       23          30        None
   Cylinders CylindersVolume Horsepower   Weight Origin
1          4             2.0        110 1168.020    USA
2          4             2.2        110 1129.464    USA
3          4             1.3         63  836.892    USA
4          4             1.6         74 1065.960    USA
5          4             1.5         92 1029.672    USA
6          4             1.8        127 1147.608    USA
7          4             1.9         85 1131.732    USA
8          4             1.5         92 1041.012    USA
9          4             1.6        100 1111.320    USA
10         4             1.8         92 1197.504    USA

# A tibble: 3 × 2
  Type     mean
  <fct>   <dbl>
1 Compact  24
2 Small    28.5
3 Sporty   23

detach("package:dplyr", unload = TRUE)

Vizualizácia

data(Cars93, package = "MASS")

library(ggplot2)

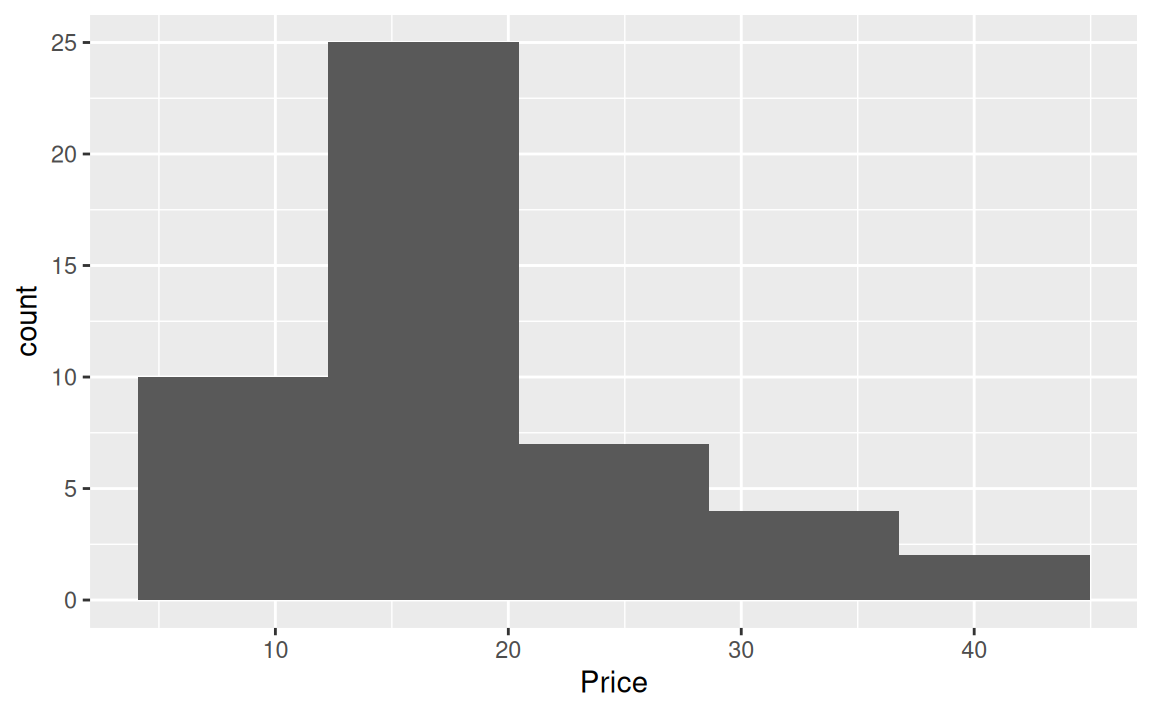

Cars93 |>
  dplyr::filter(Origin == "USA") |>
  ggplot(aes(x = Price)) + geom_histogram(bins = 5)

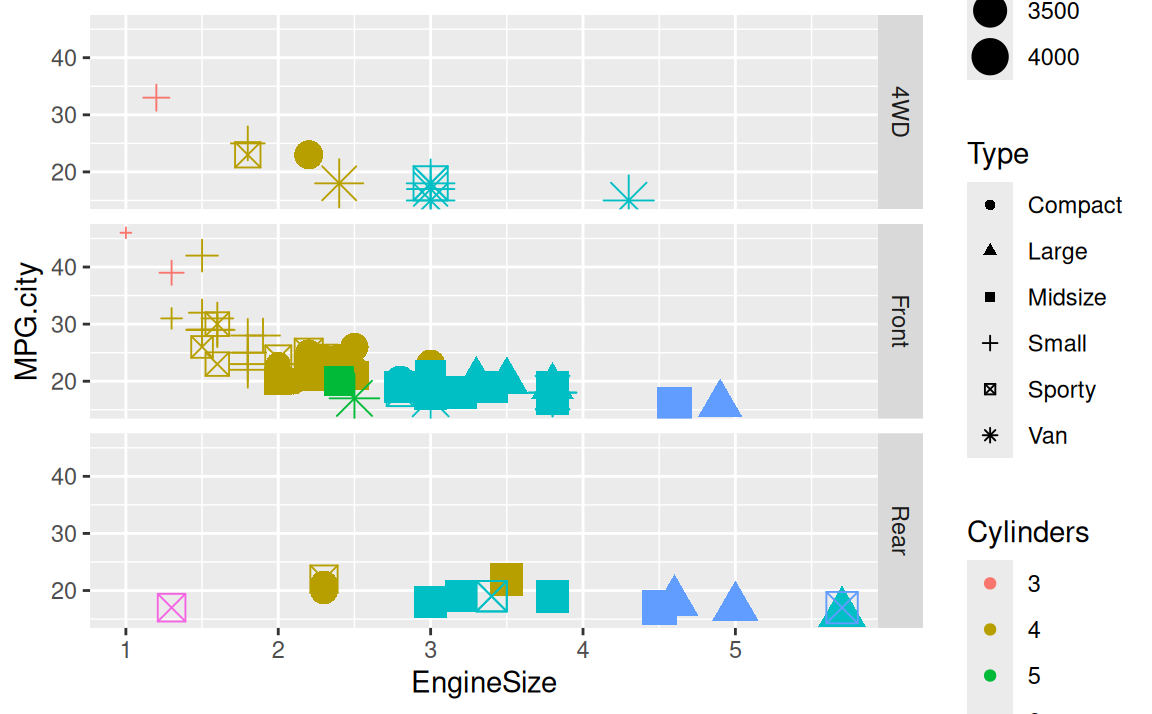

ggplot(Cars93) +
  aes(x = EngineSize, y = MPG.city, size = Weight, shape = Type, color = Cylinders) +
  geom_point() +
  facet_grid(rows = vars(DriveTrain))

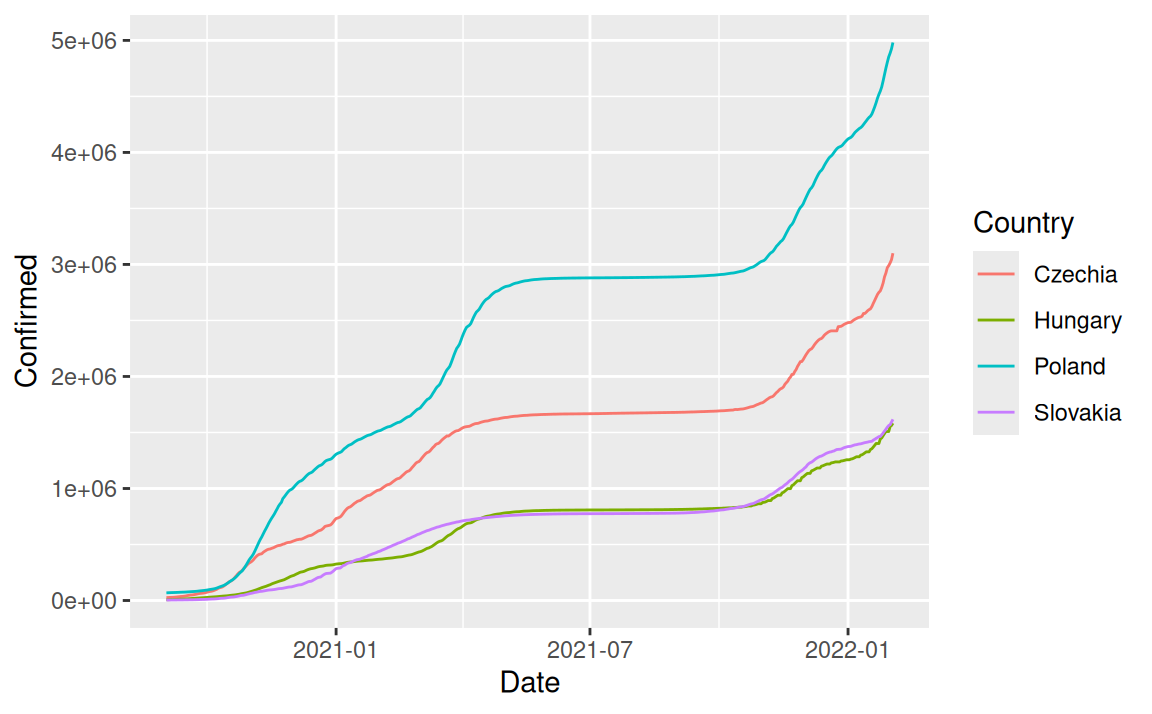

"data/countries-aggregated.csv.gz" |>
  gzfile() |>
  read.csv() |>
  dplyr::mutate(Date = as.Date(Date)) |>
  dplyr::filter(Country %in% c("Czechia", "Hungary", "Poland", "Slovakia"),
                Date > "2020-09-01") |>
  ggplot() + aes(x = Date, y = Confirmed, group = Country, color = Country) +
  geom_line()

Čistenie

head(USArrests)

           Murder Assault UrbanPop Rape
Alabama      13.2     236       58 21.2
Alaska       10.0     263       48 44.5
Arizona       8.1     294       80 31.0
Arkansas      8.8     190       50 19.5
California    9.0     276       91 40.6
Colorado      7.9     204       78 38.7

? USArrests

Druh zločinu predstavujú stĺpce assault (napadnutie), murder (vražda), rape (znásilnenie).

library(ggplot2)

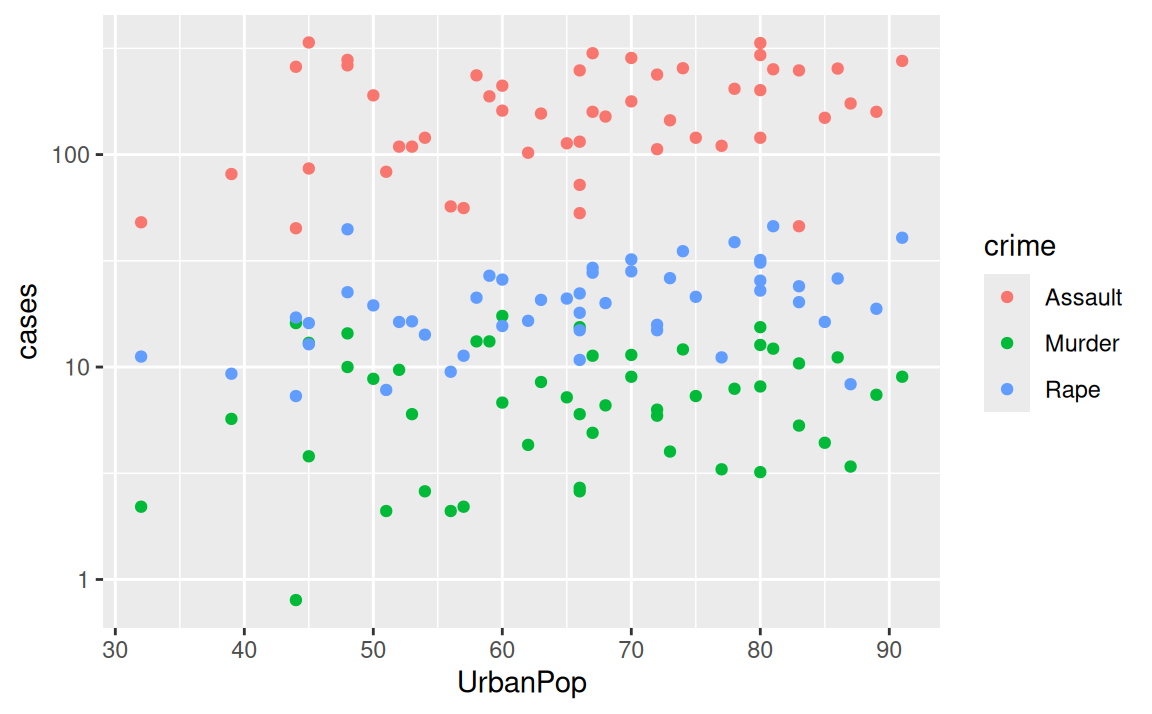

USArrests |>
  tibble::rownames_to_column("state") |>
  tidyr::pivot_longer(cols = c(Assault,Murder,Rape),
                      names_to = "crime", values_to = "cases") |>
  ggplot(mapping = aes(x = UrbanPop, y = cases, color = crime)) +
  geom_point() + scale_y_log10()

USArrests |>
  tibble::rownames_to_column("state") |>
  tidyr::pivot_longer(cols = c(Assault, Murder, Rape),
                      names_to = "crime", values_to = "cases") |>
  ggplot(mapping = aes(x = UrbanPop, y = cases, color = crime)) +
  geom_text(mapping = aes(label = state), size = 2, check_overlap = F) +
  facet_grid(rows = vars(crime), scales = "free_y")

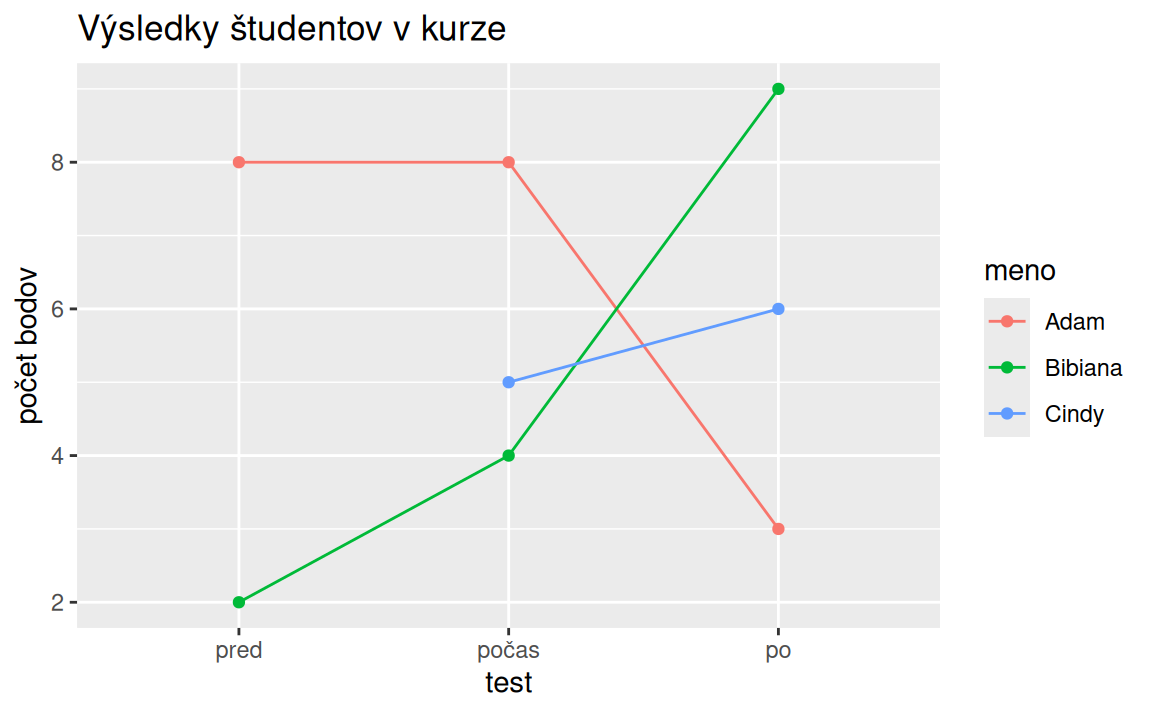

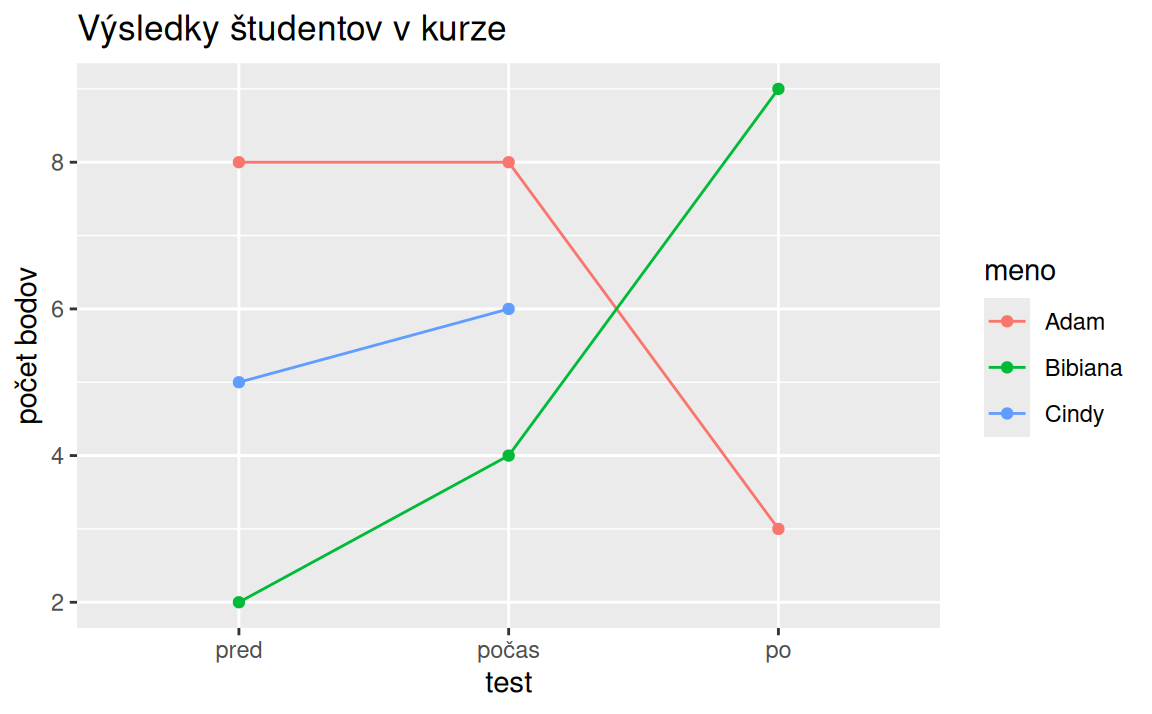

dat <- tidyr::tibble(x = c("8,8,3", "2,4,9", "5,6"))

  a)

dat |>
  tidyr::separate(x, into = c("pred","počas","po"), sep = ",") |>
  dplyr::mutate(meno = c("Adam","Bibiana","Cindy")) |>
  tidyr::pivot_longer(cols = c(pred,počas,po), names_to = "test", values_to = "body") |>
  dplyr::mutate(body = as.numeric(body),
                test = factor(test, levels = c("pred","počas","po"))) |>
  ggplot(aes(x = test, y = body, group = meno, color = meno)) +
  geom_point() + geom_line() +
  labs(y = "počet bodov", title = "Výsledky študentov v kurze")

Warning: Expected 3 pieces. Missing pieces filled with `NA` in 1 rows [3].

Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).

  b)

Z grafu vidieť, že Adam sa ulieval, na začiatku aj počas kurzu mal 8 bodov, ale po kurze už iba 3. Naopak, Bibi sa snažila, pred kurzom mala iba 2 body a po kurze až 9. O Cindy vieme povedať len to, že sa snažila zo začiatku testu, nepoznáme jej údaj z posledného testu. ```

  c)

Do funkcie separate by sme doplnili argument fill = "left".

dat |>
  tidyr::separate(x, into = c("pred","počas","po"), sep = ",", fill = "left") |>
  dplyr::mutate(meno = c("Adam","Bibiana","Cindy")) |>
  tidyr::pivot_longer(cols = c(pred,počas,po), names_to = "test", values_to = "body") |>
  dplyr::mutate(body = as.numeric(body),
                test = factor(test, levels = c("pred","počas","po"))) |>
  ggplot(aes(x = test, y = body, group = meno, color = meno)) +
  geom_point() + geom_line() +
  labs(y = "počet bodov", title = "Výsledky študentov v kurze")

Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).

Interaktívna vizualizácia

mtcars  |>
  dplyr::mutate(cyl = as.factor(cyl)) |>
  ggvis::ggvis(x = ~disp, y = ~mpg) |>
  ggvis::layer_points(fill = ggvis::input_select(c("cyl", "am"), map=as.name, label = "farba:"))

library(ggplot2)

library(shiny)
# Užívateľské prostredie:
ui <- fluidPage(    # použi fluid Bootstrap layout
  # nadpis stránky
  titlePanel("Závislosť dojazdu od zdvihového objemu"),
  # vytvor riadok s bočným panelom
  sidebarLayout(
    # definuj bočný panel s jedným vstupom
    sidebarPanel(
      selectInput("var3", "Faktor:",
                  choices = c("cyl", "am")
      )
    ),
    # vytvor miesto pre graf a tabuľku
    mainPanel(
      plotOutput("mileagePlot"),
      helpText("Priemer v skupine:"),
      tableOutput("summaryTable")
    )
  )
)
# Server:
server <- function(input, output) { # definuj server pre Shiny app
  # zaplň miesto vytvorené pre graf a tabuľku
  output$mileagePlot <- renderPlot({
    mtcars |>
      dplyr::mutate(across(c(cyl,am), factor)) |>
      ggplot(aes(x = disp, y = mpg)) +
      geom_point(aes_string(color = input$var3))
  })
  output$summaryTable <- renderTable({
    mtcars |>
      dplyr::group_by(across(input$var3)) |>
      dplyr::summarize(disp = mean(disp), mpg = mean(mpg), .groups = "drop")
  })
}
# Skombinovanie frontend-u a backendu-u.
shinyApp(ui, server)
# uvoľnenie nepotrebných knižníc
detach("package:shiny")

p <- mtcars |>
  (\(x) dplyr::mutate(x, cyl = as.factor(cyl), model = rownames(x)))() |>
  ggplot(aes(x = disp, y = mpg, color = cyl, label = model))
plotly::ggplotly(p + geom_point(), tooltip=c("label", "x", "y"))

plotly::ggplotly(p + geom_point(aes(text = paste(model,"\ndojazd: ", mpg, "mile/gal"))),
                 tooltip = c("text")
)

Warning in geom_point(aes(text = paste(model, "\ndojazd: ", mpg, "mile/gal"))):
Ignoring unknown aesthetics: text

Efektívne programovanie

multiodhadLM_p <- function(data, N) {
  mat <- as.matrix(data)
  estimLM <- function(i) {
    Ys <- mat[i,]
    X <- cbind(1, Ys[,1])
    c( solve(t(X) %*% X) %*% t(X) %*% Ys[,2] )
  }
  n <- nrow(mat)
  ind <- replicate(N, sample(n, n, replace=TRUE))
  cl <- parallel::makeCluster(3)
  parallel::clusterExport(cl, varlist = "mat", envir = environment())
  out <- parallel::parApply(cl, X = ind, MARGIN = 2, FUN = estimLM)
  parallel::stopCluster(cl)
  out
}
system.time(sim <- multiodhadLM_p(mtcars[c("wt","disp")], 5000))["elapsed"]

elapsed
  0.431

apply(sim, MARGIN = 1, quantile, probs = c(0.025, 0.975))

            [,1]     [,2]
2.5%  -183.04474 101.5900
97.5%  -94.88352 129.1999

// obsah súboru median.cpp
#include <Rcpp.h>
using namespace Rcpp;

// [[Rcpp::export]]
NumericVector sort_C(NumericVector x) {
  int n = x.size();
  double xi;
  for(int i = 0; i <= n-2; ++i) {
    for(int j = i+1; j <= n-1; ++j) {
      xi = x[i];
      if (x[j] < xi) {
        x[i] = x[j];
        x[j] = xi;
      }
    }
  }
  return x;
}

// [[Rcpp::export]]
double median_C(NumericVector x) {
  int n = x.size();
  NumericVector y = sort_C(x);
  int i = floor(n/2);
  double out;
  if (n % 2 == 0) {
    out = (y[i-1]+y[i])/2;
  } else {
    out = y[i];
  }
  return out;
}

Rcpp::sourceCpp(file = "median.cpp")

sort_C(16:11)

[1] 11 12 13 14 15 16

median_C(16:11)

[1] 13.5

Funkcia sort_C sa dá nahradiť napr. preusporiadaním kópie vstupného vektora pomocou std::sort.

Rcpp::cppFunction(code = "double median_C(NumericVector x) {
  int n = x.size();
  NumericVector y = clone(x);
  std::sort(y.begin(), y.end());
  int i = std::floor(n/2);
  double out;
  if (n % 2 == 0) {
    out = (y[i-1]+y[i])/2;
  } else {
    out = y[i];
  }
  return out;
}")

Úplne najjednoduchšie je osladiť si život pomocnými funkciami, ktoré prostrediu C++ balík Rcpp sprístupňuje z prostredia R.

Rcpp::cppFunction(code = "double median_C(NumericVector x) {
  return median(x);
}")

Ulož dáta do csv súborov:

write.table(nycflights13::flights, file = "data/nycflights13_flights.csv",
            sep = ",", row.names = FALSE)
write.table(nycflights13::planes, file = "data/nycflights13_planes.csv",
            sep = ",", row.names = FALSE)

Zapíš súbory do databázy. Externým súborom by sa nemuseli vytvoriť tabuľky so správnym formátom polí, napr. by všetky boli textové a bolo by potrebné ich typ manuálne meniť, alebo neskôr pri filtrovaní používať textové hodnoty, napr. day == “1”.

con <- DBI::dbConnect(drv = RSQLite::SQLite(), dbname = "data/nycflights13.db")
DBI::dbWriteTable(conn = con, name = "Flights", value = "data/nycflights13_flights.csv", overwrite=T)
DBI::dbWriteTable(conn = con, name = "Planes", value = "data/nycflights13_planes.csv", overwrite=T)
dplyr::tbl(con, from = "Flights")
DBI::dbDisconnect(con)

Vytvor nové spojenie, zlúč tabuľky a vykresli:

nycflights13_con <- DBI::dbConnect(drv = RSQLite::SQLite(), dbname = "data/nycflights13.db")
dplyr::tbl(nycflights13_con, from = "Flights") %>%
  dplyr::filter(month == 1, day == 1, dep_time > 500 & dep_time < 800) %>%
  dplyr::select(tailnum, origin) %>%
  dplyr::left_join(y = dplyr::tbl(nycflights13_con, from = "Planes"),
                   by = "tailnum") %>%
  dbplot::dbplot_histogram(x = seats, bins = 10)
DBI::dbDisconnect(nycflights13_con)

Filtrovanie sa dá vykonať aj po zlúčení tabuliek, ale je to menej efektívne.
Aby sa dali použiť pokročilejšie funkcie ggplot2, napr. vykreslenie po skupinách (group, colour), je pravdepodobne potrebné stiahnuť zobrazované údaje lokálne, a použiť ggplot2::ggplot namiesto dbplot.
